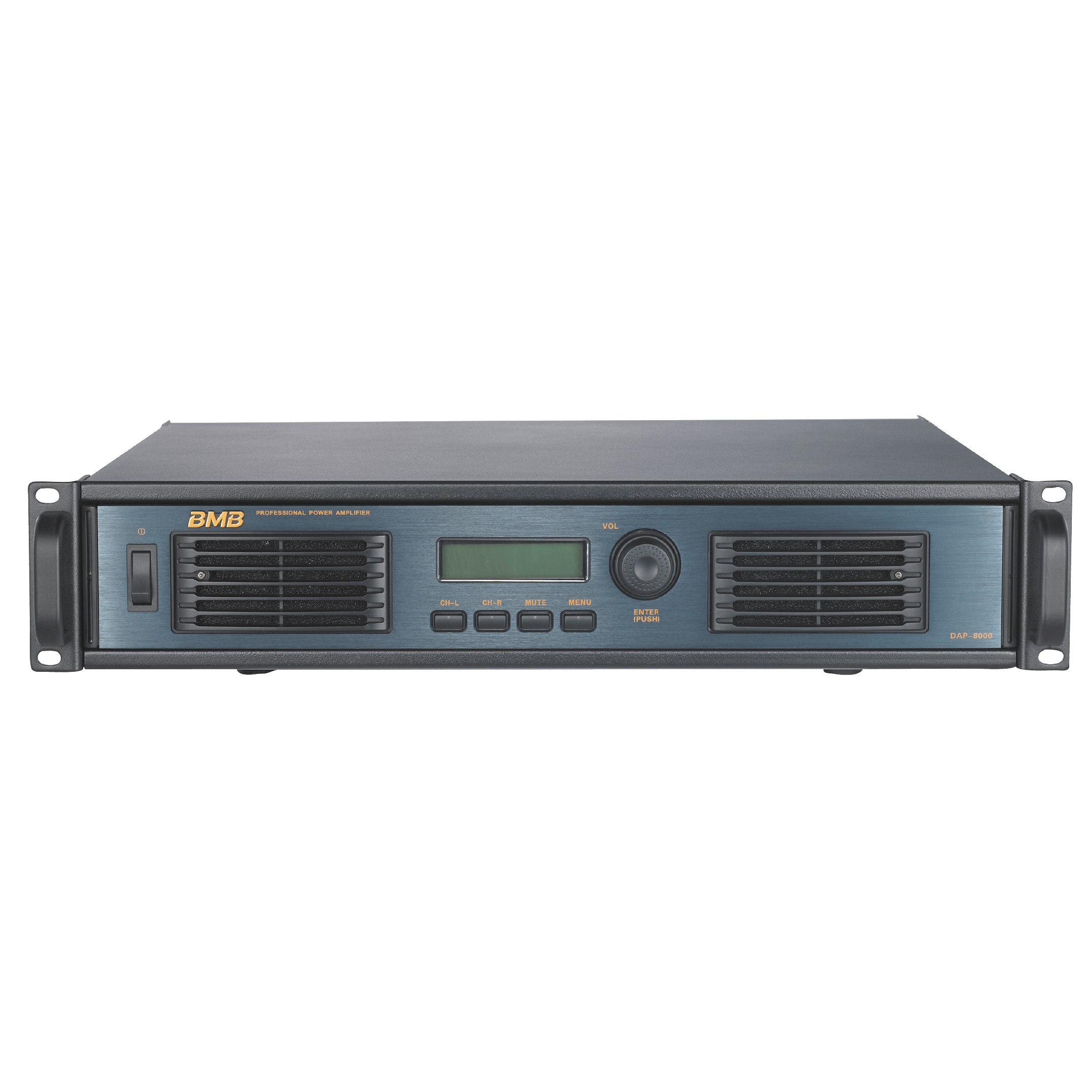

Professional သံုးရန္ Hi-Fi Audio Power Amplifier - BRIGDE  ခ်ိတ္ဆက္ပါက 2000 watts x 1 channel (DAP-8000 အတြက္) ႏွင့္ 1500 watts x 1 channel (DAP-5000) အထိ အသံုးျပဳႏိုင္သည္။  - ဆူညံသံေလွ်ာ့ခ်ရန္ High-pass နွင့္ Chassis-ground ခလုတ္မ်ားပါဝင္သည္။ - Anodic Oxidation အလႊာပါးျဖင့္ ဖံုးအုပ္ထားေသာ Aluminium သတၳဳျဖင့္ စက္ဧ။္ မ်က္ႏွာစာ ကို ျပဳလုပ္ထားသည္။ - မ်က္ႏွာစာ တြင္တပ္ဆင္ထားေသာ ဇကာမ်ားသည္ အလြယ္တကူ ျဖဳတ္ၿပီး သန္ ့ရွင္းေရးျပဳလုပ္ႏိုင္သည္။

Specifications

 800 Watts per CH @ 8 Ohms / 2000 Watts @ 8 Ohms Bridge

• Max Output Power: 1100Wx2CH (4Ω) : stereo mode

  950W x 2CH (6Ω) : stereo mode

                                                             800 W x 2 CH (8Ω) : stereo mode

                                                             1500 W x 1 CH (4Ω) : monaural mode

                                                              950 W x 1 CH (8Ω : monaural mode

                                                             2000 W x 1CH (8Ω) : bridge mode

• Frequency characteristic( 20Hz~20kHz, 8Ω ) : ±3dB
• THD (8Ω , 1kHz ) : 0.04%
• SN Ratio : 98dB over
• Damping factor (100Hz 8Ω): 300 over
• Voltage gain : 41 ±2dB
• Channel separation (20Hz~1000Hz 8Ω ) :48dB over
• Input impedence : 20kΩ (balance)

                                                        10 kΩ (unbalance)

• HPF Switch : 50Hz/Pass
• Ground Switch : GND/FLOAT
• Audio Input: XLR , RCA (trough out)
• AC Input: AC200V ~ 240V (50/60Hz)
• Dimensions (mm): 483(W) x 89(H) x 414(D)
• Weight: 19.0 kg
